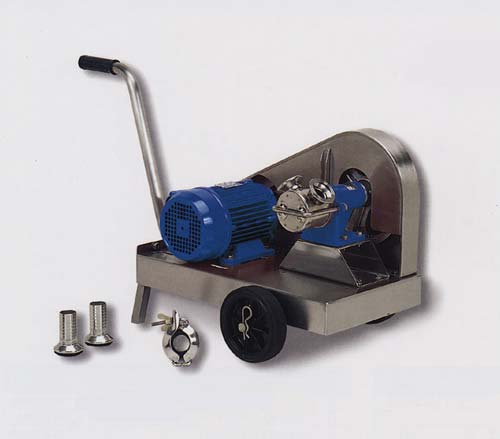

BELT
DRIVEN PUMP ON TROLLEY
mod. GR MINOR 40self-priming, flexible
impeller, belt driven pump, slow running speed, "standard" control panel
made in stainless steel
manufacture LIVERANI
mod. GR MAJOR 60
mod. GR MAXI 80 general
features This volumetric rotary pump, a self-priming type(up to 6
metres maximum), has a flexible impeller.
It is reversible with a slow running
speed (also available as monobloc - coaxial) reduced by pulley arrangement at
1 or 2 speed. The pump is available with a mechanical speed variator or integrated
frequency converter (inverter). The trolley/base, fittings and the pump are made
completely in stainless steel AISI 304 ( AISI 316 on request). The standard pump
impeller is in natural non toxic rubber or alternatively on request in neoprene,
nitrile, EPDM or silicon. The standard mechanical seal is stainless steel-graphite-NBR
or on request in vidia-vidia-NBR or vidia-vidia-viton.
FOOD INDUSTRY:
transferring of delicate liquids and also those with solid in suspension with
different viscosity and without emulsifier (wine, must, must and stemmed must,
beer, fruit pulp and juices, jams, liquid sugars, glucose, milk, butter, yoghurt,
eggs, oil and tomatoes in pulp and juices).
PHARMACEUTICAL AND
CHEMICAL INDUSTRY: transferring of starch, glues (with a water base),
emulsions, glycerine, wax, detergents, soap liquids, shampoos, creams, syrups,
saps, vegetables and animals fat, industrial waste water, etc.
technical
data
- weight 38 kg
- speed: 1 (2 speed available with three-phase
motor)
- motor: single-phase HP 2
- Rpm: 470
| PERFORMANCES
Head (meters) DELIVERY (Litres/hour) |
|
m.
0 | m.
4 | m.
8 | m.
12 | m.
16 |
| 2400 |
2150 |
1800 |
1400 |
700 |
-
Are available other models (three-phase) with different
type of r.p.m., CE control panel and double speed.
